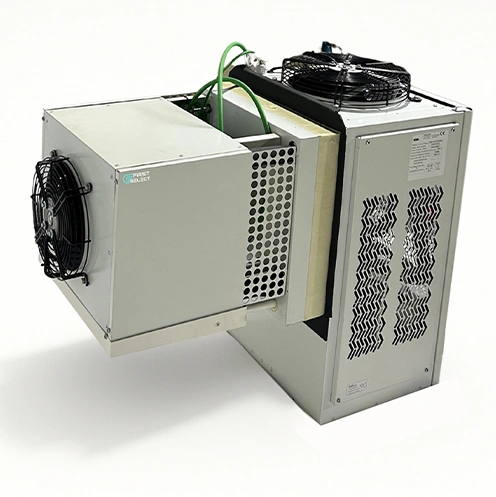

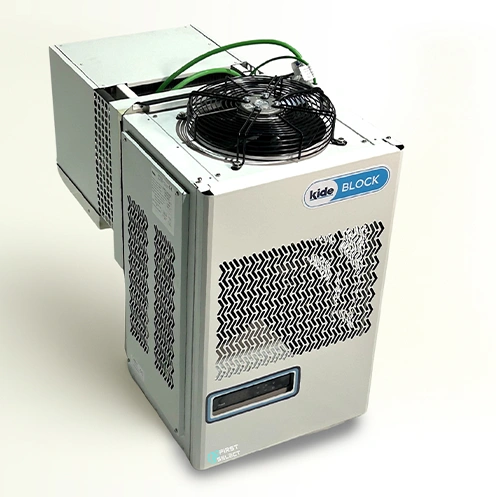

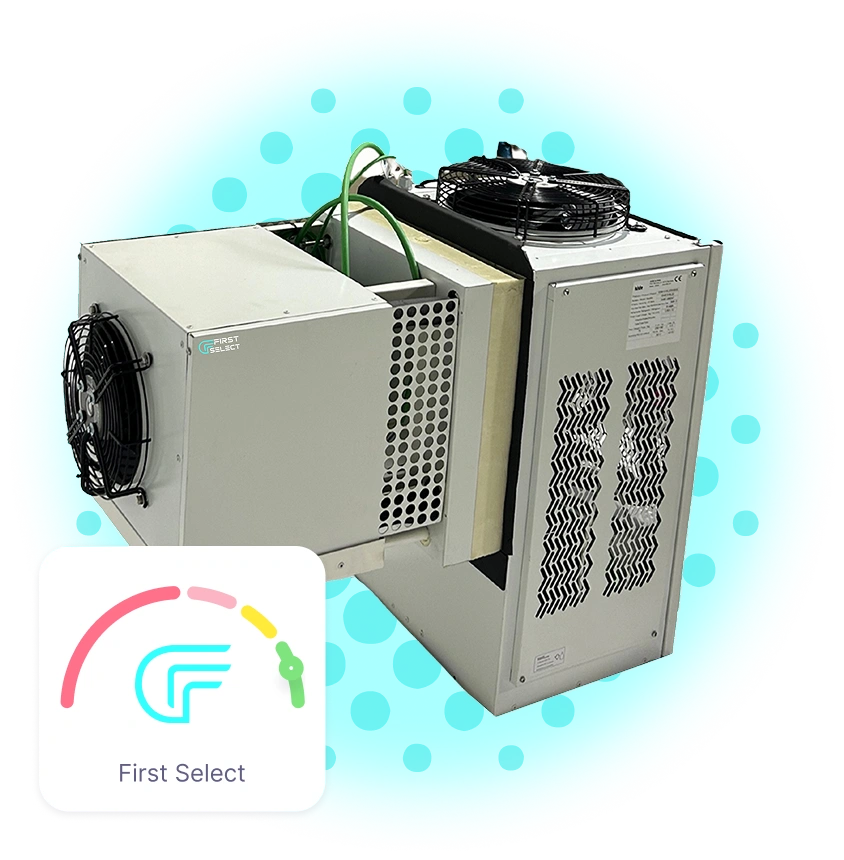

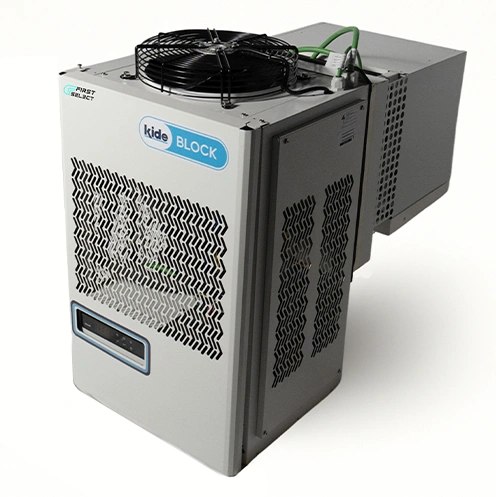

Our Kide Compact commercial wall-mounted refrigeration units for small volume cold storage rooms, for use in medium and low temperature applications. All KIDE units we supply in Canada are ETL certified. Centrifugal-fan versions (KIDE EMC) for ducted installations are also available by special order from the factory.
These compact wall-mounted systems offer:
Winter Kit
Rotation/failure system for two units
Synchronized defrost system for two units
Voltage protector
Anti-corrosion treatment on condenser/evaporator coil
Monitoring and control system
Time control
Humidifier external to the equipment and control (cooling)
Anti-corrosive treatment for the condenser unit
-15°C to -25°C
-5°C to 10°C
3/4 HP to 3 HP

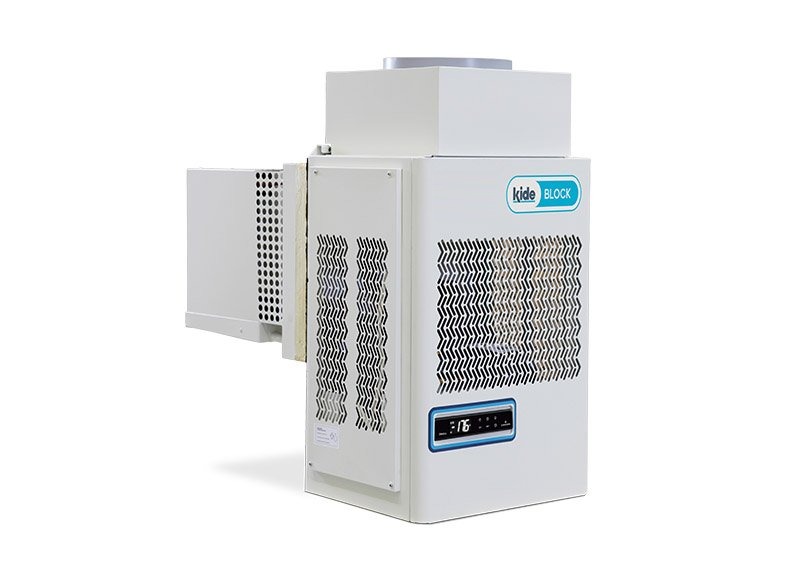

Installing the unit indoors, or somewhere the condenser's warm air can't vent freely? The KIDE EMC is the centrifugal-fan version of our compact wall-mounted unit. Its centrifugal condenser fan lets you duct the warm exhaust air outside or to another room.
EMC units are built to order and shipped directly from the KIDE factory. Tell us your cold room size, temperature and where the unit will be installed, and we'll confirm the right model, lead time and price.
| Model | Application | Room temp. | Cooling capacity | BTU/h (approx.) | Max current | |
|---|---|---|---|---|---|---|
| EMB1009M2Z | Cooler | -5°C to +10°C | 1,405 W | 4,800 | 7.1 A | Get quote |
| EMB2011M2Z | Cooler | -5°C to +10°C | 1,625 W | 5,550 | 9.1 A | Get quote |
| EMB2016M2Z | Cooler | -5°C to +10°C | 2,950 W | 10,050 | 10.4 A | Get quote |
| EMB3021M2Z | Cooler | -5°C to +10°C | 3,722 W | 12,700 | 13.7 A | Get quote |
| EMB1016L2Z | Freezer | -25°C to -15°C | 1,280 W | 4,350 | 7.4 A | Get quote |
| EMB2018L2Z | Freezer | -25°C to -15°C | 1,560 W | 5,300 | 15.7 A | Get quote |
| EMB3018L2Z | Freezer | -25°C to -15°C | 1,781 W | 6,100 | 15.7 A | Get quote |
| EMB3021L2Z | Freezer | -25°C to -15°C | 2,526 W | 8,600 | 17.9 A | Get quote |
All models: 230 V / 1 Ph / 60 Hz, R-404A, hot-gas defrost, ETL Listed. Cooling capacity for coolers at 0°C room / 32°C ambient; freezers at -20°C room / 32°C ambient.
