Refrigeration Units

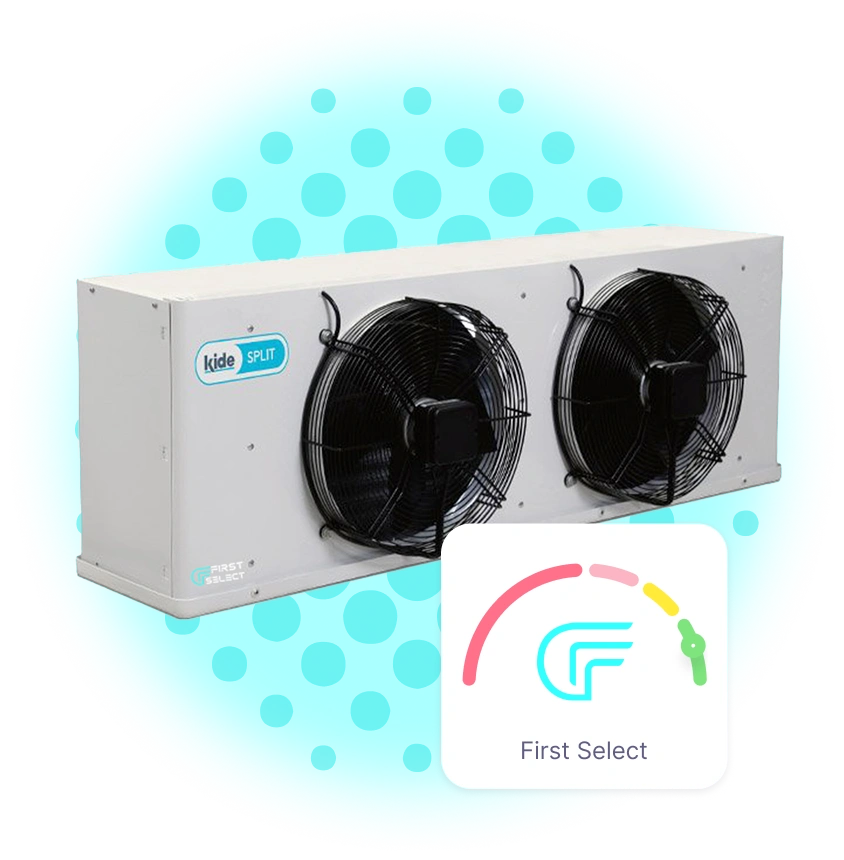

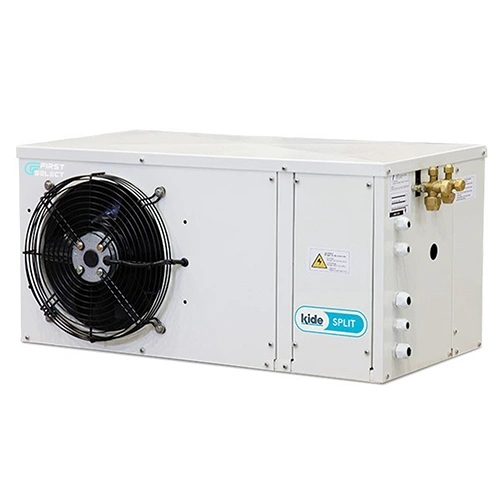

Kide SPLIT Units – ESC Models

The ESC split refrigeration units are designed for high-efficiency cooling in medium and low-temperature applications. With a hermetic compressor, thermostatic expansion valve, electric defrost, and advanced safety features such as pressure control and dirty condenser alerts, these systems ensure reliable performance.
Models 100–300 include pre-wired cables and remote multifunctional control for fast installation (pipe length up to 10m). Ceiling or cubic evaporators are available depending on series and capacity.

Optional Features

Winter Kit

Rotation/failure system for two units

Synchronized defrost system for two units

Voltage protector (single-phase version)

Anti-corrosion treatment on condenser/evaporator coil

Independent electrical panel (100-200-300 series)

Monitoring and control system

Cubic evaporator (100-200-300 series)

Other voltages and 60 Hz

Humidifier external to the equipment and control (cooling)

Oil separator (400-500 series)

Anti-corrosive treatment for the condenser

General Features:

Pre-charged with refrigerant (Max. length 10 m)

Hermetic compressor

Service valves (Series 100-200-300)

Safety valve (Series 500)

Liquid receptacle

Ceramic filter dryer

Liquid sight glass

High and low-pressure control

Condensation control by pressure switch

Probe alert "dirty condenser"

Thermostatic expansion valve in the evaporator

Solenoid valve in the evaporator

Automatic defrosting by heating element

Draintipe heating element in low temperature (2 m)

Ceiling-type evaporator with nitrogen (Series 100-200-300)

Cubic evaporator with nitrogen (Series 400-500)

Electrical Features:

Electrical supply cable (3 m) (Series 100-200-300)

Electrical interconnection (2) evaporator (10 m) (Series 100-200-300)

Service valves (Series 100-200-300)

Cable for light (3 m) (Series 100-200-300)

Applications

Small-volume cold storage rooms in medium and low-temperature applications

Electrical Features

Freezer:

-15°C to -25°C

Cooler:

-5°C to 10°C

Available Capacities

3/4 HP to 3 HP
